Our longest elongated ethanol burner enables absolute versatility
Loading image...
XL1200
Creating distinctive social settings that are welcoming and feel like ‘home’ is a vital trend across myriad architectural environments - from commercial to hospitality to residential. Because bioethanol is a clean-burning fuel source you don’t need a flue or chimney at all. This means that you can create a beautiful fireplace feature with ease. The linear features and absolute versatility of the XL1200 burner lends itself to the creation of stunning architectural masterpieces.
Accessoires
Included
Baffles XL
Les chicanes XL sont utilisées pour réguler et stabiliser davantage la flamme, ce qui augmente le rendement énergétique du brûleur.
Lighting Rod

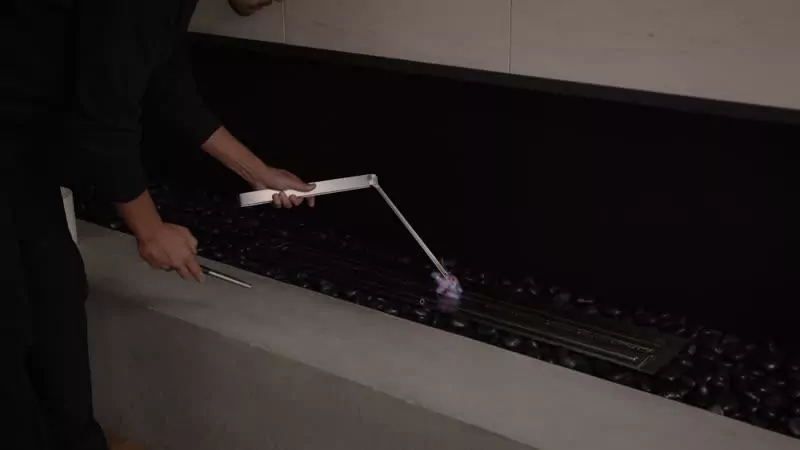

The Lighting Rod enables you to safely adjust the slider position of the Burner at any time. It is also used for the ignition and extinguishing procedures.
En option
XL1200 Top Tray
The incorporation of a Top Tray into your setting protects against heat transference and aids in the collection of accidental spillage.
XL1200 Top Tray
The incorporation of a Top Tray into your setting protects against heat transference and aids in the collection of accidental spillage.
Plasma Pare-feu
Doté d'élégantes poignées circulaires et de simples pieds en acier inoxydable, le panneau plat de verre semble flotter tout en assurant la stabilité.
Specifications
Application
Intérieur ou extérieur
Dimensions
Model
- L 1,200 mm [47.2 in]
- W 195 mm [7.7 in]
- D 112 mm [4.4 in]
Top Tray 1
- L 1,253 mm [49.3 in]
- W 248 mm [9.8 in]
- H 124 mm [4.9 in]
Weight
- Burner 15.66 kg [34.5 lb]
- Burner + Top Tray 20.84 kg [45.9 lb]
Materials
Couleur
If installing a Burner INDOORS, a Top Tray must be incorporated into your setting before operating the appliance.
Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align.
Line drawings show model with the Top Tray installed.

Efficiency
téléchargements
Vidéos
Loading image...
How to operate your XL Series ethanol burner
The product shown in this video is for demonstration purposes only and may not represent the exact model you are viewing.
Loading image...
How to use the XL Baffles
Loading image...


Polyvalence du design
Facilement intégrables dans des décors sur mesure - armoires, unités multimédia, murs, bancs flottants et piliers spécialement conçus. Vous avez la liberté d'être créatif.
Récompensé par un prix
A reçu le prix Vesta 2009 de Hearth & Home (États-Unis).
Loading image...


Conception linéaire
Linear features and minimal clearance requirements provide the freedom to create a stunning horizontal piece of architecture.
Loading image...
Régulation de la flamme
Les inserts de déflecteurs spécialement conçus vous permettent de réguler et de stabiliser davantage la flamme.
Loading image...


Safety first
Whether it’s the safe shut-off system, dedicated filling point, safety markings or volume guides, our ethanol burners lead the way in safety.
Loading image...
Pas de conduit, pas de cheminée, pas d'évent.
Fuelled by clean-burning e-NRG bioethanol, our burners produce a beautiful orange flame without any smoke, soot or ash.
Loading image...


Application intérieure ou extérieure
La flexibilité est la vôtre grâce à l'utilisation de l'acier inoxydable. Installez-les à l'intérieur ou à l'extérieur et créez l'élément de feu parfait.
Loading image...


Tested worldwide
All burners (excluding VB2) are OMNI-Test Laboratories Inc. listed in accordance with UL 1370-16 “Standard for Unvented Alcohol Fuel Burning Decorative Appliances” in the USA, are certified by BSI in accordance with EN16647 (excluding VB2), and comply with the ACCC Safety Mandate for Australia.
Loading image...


Available in multiple sizes
The XL Series is available in multiple linear sizes depending on your project unique requirements.
