Manhattan 50 Table Extérieure

A fire table that combines ingenuity with functionality

Loading image...

table cheminées

  /

Manhattan 50

Manhattan 50

S'inspirant de l'une des villes les plus densément peuplées au monde, où les prix de l'immobilier sont très élevés et où la surface est très chère, cette table de cheminée allie ingéniosité et fonctionnalité. Le Manhattan Table Cheminée d'EcoSmart sait comment tirer le meilleur parti d'un petit espace.

Collection complète

Accessoires

Included

Loading image...

S500 Fire Screen Studio
Pare-feu S500

Écrans aider pour minimiser l'impact du vent sur la flamme et réduire la consommation de carburant.

Teck

Loading image...

AB8 Anneau d'efficacité
AB8 Anneau d'efficacité

AB8 Les anneaux efficaces sont utilisés pour réguler et stabiliser davantage la flamme, ce qui augmente le rendement énergétique du brûleur.

Éthanol

Loading image...

Jerry Can 2.5 Gal Studio
Jerry Can 5L

The Jerry Can allows for the safe storing/decanting of e-NRG ethanol.

Éthanol

Loading image...

Fire Lighter Safety Accessory
Fire Lighter

Ce briquet butane rechargeable permet d'allumer la tige d'allumage en toute sécurité. La longueur du briquet améliore encore la gestion du processus d'allumage.

Éthanol

Loading image...

Lighting Rod Safety Accessory
Lighting Rod

The Lighting Rod enables you to safely adjust the slider position of the Burner at any time. It is also used for the ignition and extinguishing procedures.

Éthanol

Loading image...

Bottle Adaptor Studio
Bottle Adaptor

L'adaptateur relie le bec de sécurité du site Jerry Can directement à la bouteille e-NRG, ce qui permet d'alimenter le feu plus rapidement et plus facilement.

Éthanol

Loading image...

Black Glass Charcoal Studio
Black Glass Charcoal

Le site Black Glass Charcoal est fabriqué à partir de verre trempé de haute qualité et a été conçu pour résister aux intempéries et à des températures allant jusqu'à 1300ºF/700ºC.

En option

Loading image...

S500 Fire Screen Studio
Pare-feu S500

Écrans aider pour minimiser l'impact du vent sur la flamme et réduire la consommation de carburant.

Concrete

Loading image...

R400 Fire Screen Studio
Écran de fumée R400

Écrans aider pour minimiser l'impact du vent sur la flamme et réduire la consommation de carburant.

Concrete

Loading image...

S22 Cover Plate Studio
S22 Plaque de recouvrement

Transform the burner section of your Ecosmart fire table, easily turning it into a flat, usable coffee table surface.

Loading image...

Manhattan 50 Cover Studio
Manhattan 50 Sac d'hiver

Ces housses de cheminée d'extérieur aider protègent votre investissement. Fabriquées en tissu Oxford enduit d'UV, elles repoussent la poussière, l'eau et autres débris pour un entretien facile.

Loading image...

LT50 All-Season Cover - Black
LT50 Couverture toutes saisons

Ces housses de cheminée d'extérieur aider protègent votre investissement. Fabriquées en tissu Oxford enduit d'UV, elles repoussent la poussière, l'eau et autres débris pour un entretien facile.

Loading image...

AB8 Burner Cover Studio
AB8 Couvercle de brûleur en silicone

Silicone Burner Covers protect ethanol burners from the elements when the EcoSmart model isn’t in use.

Specifications

Application

Intérieur ou extérieur

Dimensions

  • L 1,270 mm [50 in]
  • W 762 mm [30 in]
  • H 296 mm [11.7 in]

Weight

  • Concrete 51.74 kg [114.1 lb]
  • Teak 50.9 kg [112.2 lb]

Materials

Fluid™ Concrete or Teak Wood Surround; Grade 304 Stainless Steel (Optional Black Ceramic Coating) Burner

Couleur

Surround

Naturel
Naturel
Graphite
Graphite
Blanc
Blanc
Natural Teak
Natural Teak

Burner

Acier inoxydable
Acier inoxydable
Noir
Noir
  • Liquid Propane and Natural Gas are suited for Outdoor use only. Bioethanol is suited for both Indoor/Outdoor use; however, additional parts are REQUIRED for indoor use.

  • The weight includes the burner and black glass charcoal.

  • Line drawings show model with the Fire Screen installed.

Manhattan 50 Fire Table

Efficiency

Burner Information

Bioéthanol   Propane liquide   Naturel Gaz
Burner Configuration Compatible with this model
AB8   G16T   G16T
Volume Capacity How much fuel
8 L 2.1 gal
N/A
N/A
Thermal Output How much heat it creates
20,433 BTU/h 21.56 MJ/h - 6 kW
65,000 BTU/h 68.58 MJ/h - 19 kW
65,000 BTU/h 68.58 MJ/h - 19 kW
Burn Time How long it lasts
7-9 h 8 L [2.1 gal]
8-20 h Tank
Illimité
Fuel Consumption How much fuel it consumes on MAX
1.1 L/h 0.29 gal/h
N/A
N/A
Heats on Average How much space it heats
60 m² 646 ft²
Extérieur seulement
Extérieur seulement
Minimum Room Size Required for this burner
116 m³ 4,097 ft³
Extérieur seulement
Extérieur seulement
  • These values are indicative ONLY and may vary depending on the model purchased,installation, and the fuel composition.

  • This model complies with existing standards in the USA, Europe, UK and Australia. O-TL listed to UL 1370, EN 16647 BSI Certified and ACCC Safety Mandate compliant for bioethanol burners.

  • To comply with EN 16647 the Indoor Safety Tray & included AB8 Burner Efficiency Ring must be installed before operating indoors. LP/NG burners are UL/ULC listed to ANSI Z21.97-2017 and CSA 2.41-2017, and Gas Appliance Regulation 2016/426 as it applies to EU (CE) and UK (UKCA).

téléchargements

Model Specifications
Model Specifications

PDF

Clearances & Installation Manual
Clearances & Installation Manual

PDF

Installation & Operation Manual - Ethanol Burners
Installation & Operation Manual - Ethanol Burners

PDF

Installation & Operation Manual - Gas Burners
Installation & Operation Manual - Gas Burners

PDF

Vidéos

Loading image...

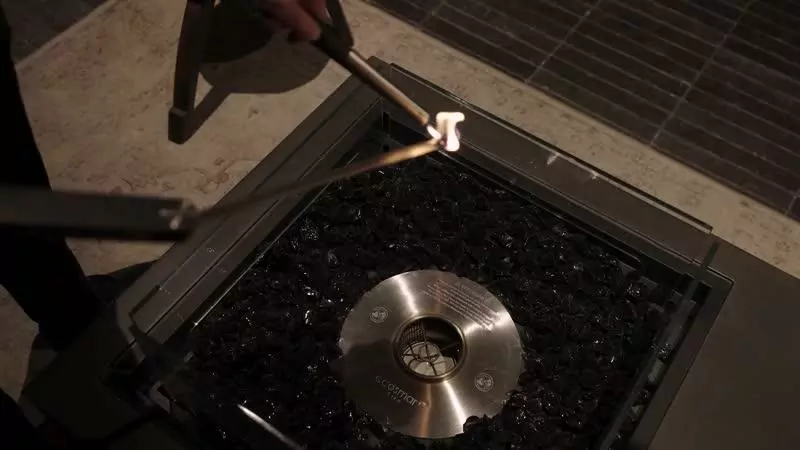

How to assemble and operate your AB Series ethanol burner

  • The product shown in this video is for demonstration purposes only and may not represent the exact model you are viewing.

Loading image...

How to assemble your glass cover plate

  • The product shown in this video is for demonstration purposes only and may not represent the exact model you are viewing.

Loading image...

How to install the Glass Fire Screen

Loading image...

thumbnail: esf-manhattan-50-fire-table-private-residence.jpgManhattan 50 - Private Residence

Parfait pour recevoir

Les tables de feu rassemblent tout le monde et offrent un espace pour les boissons et les assiettes de nourriture avec une flamme hypnotique comme pièce maîtresse.

Polyvalent et déplaçable

Lorsque vous choisissez le bioéthanol ou le propane liquide comme source de combustible, vous n'êtes jamais lié ! Comme il n'y a pas de raccordement aux services publics, le déplacement de votre feu est un jeu d'enfant. Amusez-vous à vos propres conditions avec EcoSmart Fire.

Loading image...

thumbnail: mad-manhattan-50-fire-table-detail.jpgManhattan 50 Fire Table - Detail Shot

Matériaux tous temps

Our concrete finish is crafted from a blend of green cement and recycled materials for a strong yet lightweight table. Specially formulated with Fluid™ Concrete Technology, our fire tables resist scratches, stains, mould and mildew. The smooth finish repels dust and debris, making cleanup easier.

Couleurs organiques

Vous avez le choix entre un bois de teck naturel et blond ou des couleurs béton élégantes et de style industriel (naturel, graphite ou os).

Loading image...

Flamme sans fumée

Relish in the warmth of a fire that creates an ambience without the smoke, soot, or mess associated with wood.

Loading image...

thumbnail: esf-manhattan-50-fire-table-private-residence-balmain.jpgManhattan 50 - Private Residence

Un espace de table généreux

The table's large surface area is perfect for setting down wine glasses and appetisers, making it ideal for hosting a party or gathering.

Articulating feet

Il est équipé de pieds articulés réglables en hauteur à 360º pour aider . Vous obtenez une position parfaitement plane et stable sur votre sol.

Loading image...

Trois choix de carburants

Choisissez parmi trois types de carburant pour répondre à vos besoins. L'éthanol écologique peut être installé en quelques minutes seulement et peut être déplacé sans aucune restriction, à l'intérieur comme à l'extérieur. Naturel Le gaz offre non seulement le coût d'exploitation le plus bas, mais il ne nécessite aucun ravitaillement, quel qu'il soit. Le propane liquide est facilement disponible et s'alimente en appuyant simplement sur un bouton.

Loading image...

thumbnail: esf-manhattan-50-fire-table-ysm-house.jpgManhattan 50 - YSM House © Interior Architecture: Moran Gozali Photographers: Ruslan & Gali Paul

Durabilité

Fabriqué en béton Fluid™ résistant aux intempéries, un matériau incroyablement solide mais relativement léger. Doté d'une barrière résistante aux taches et aux chocs qui le protège des intempéries de l'environnement - même dans des conditions extrêmes et une longue exposition aux UV.
